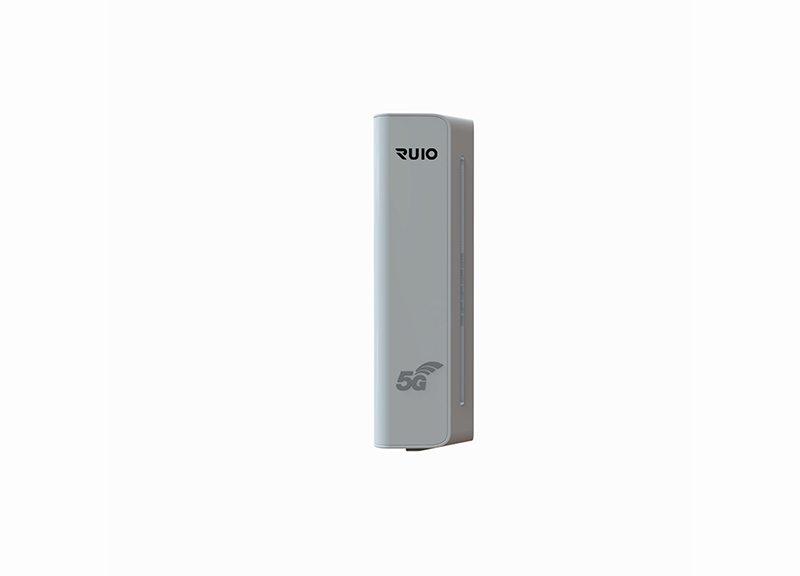

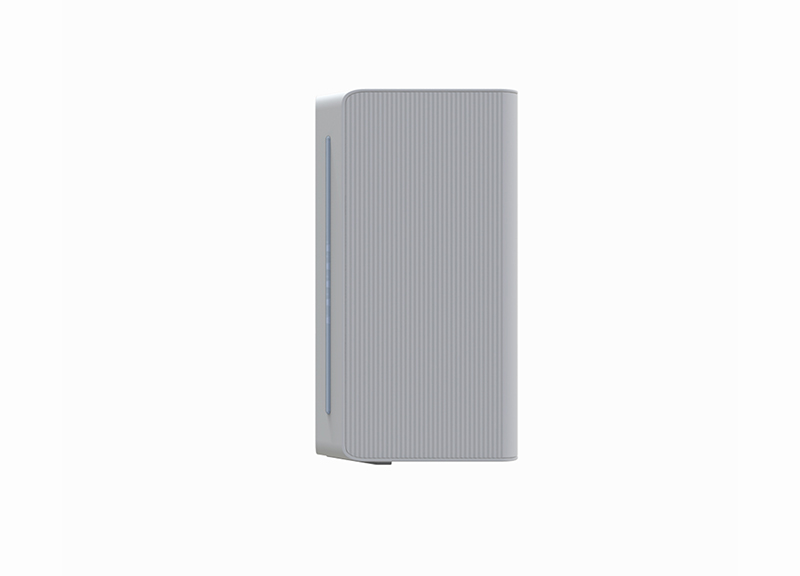

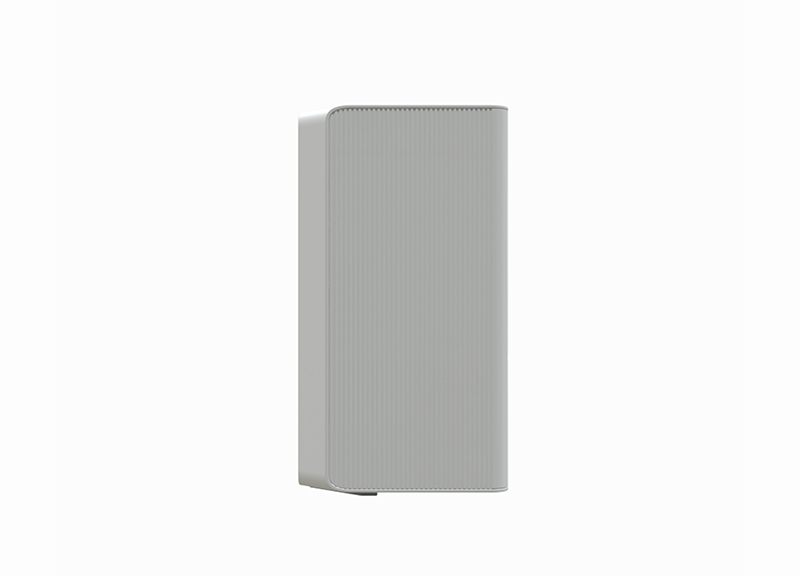

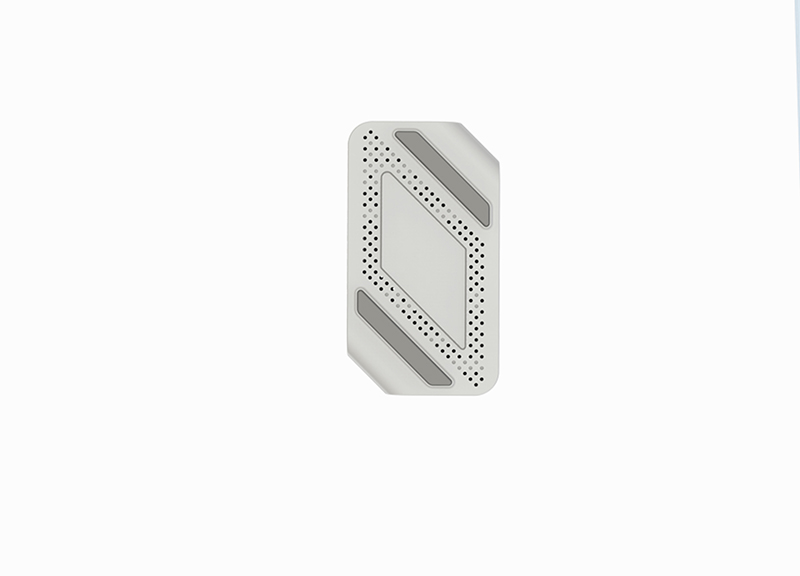

ZLT X100
Specifications
Hardware Specifications
|
Spec |
Description |
|
Chipset |
5G/LTE:UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz |
|
Wi-Fi: NXP 88W9098 |
|
|
Memory |
ROM: 2Gb |
|
RAM: 4Gb DDR3 |
|
|
Indicators |
|
|
Buttons |
|
|

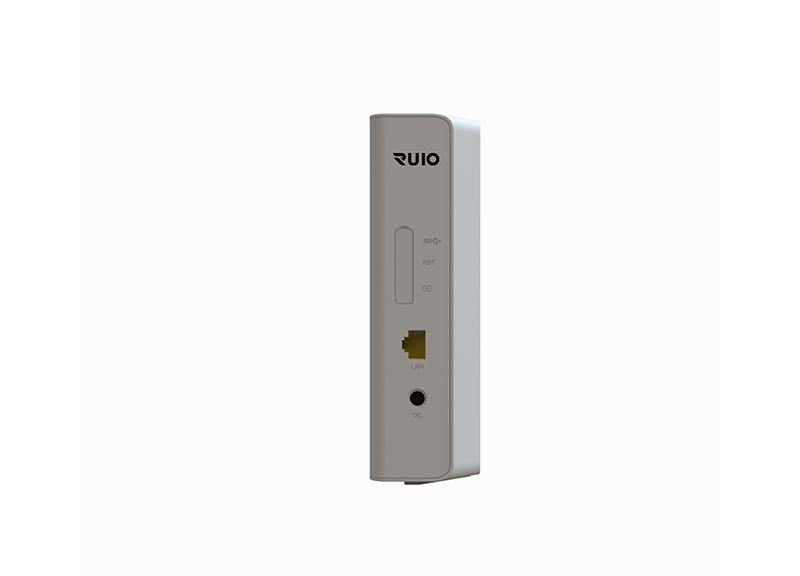

Interfaces |
|
|

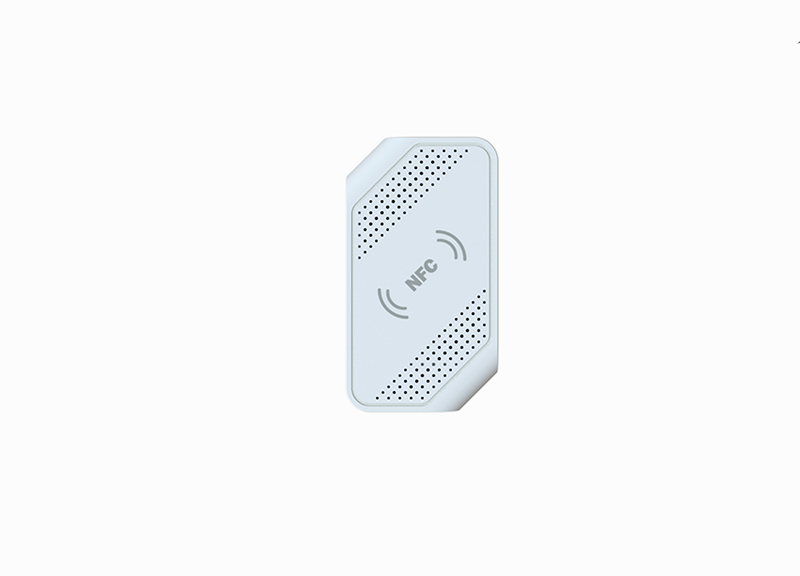

NFC |
Supported |
|
Bluetooth |
Supported |
|
Power Supply |
AC100V~240V,50Hz~60Hz DC 12V DC±10% 1.5A |
|
Power Consumption |
< 18W |
|
Dimensions |
160MM*72MM*50MM |
|
Weight |
500g |
Network/RF Specifications
|
Feature |
Capability |
|
3GPP Release |
NR: 3GPP Release 15 |
| LTE: 3GPP Release 12 | |
|
NR Modulation |
DL 256QAM, UL 256QAM |
|
NS SCS |
30khz, 15khz |
|
Support Bands |
NR:N1/N3/N8/N28/N41/N77/N78; |
| 4G FDD: FDD:B1/B3/B5/B8 | |
| 4G TDD: B34/B38/B39/B40/B41; | |
|
DSS Bands |
FDD NR N1/N3/N8/N28 |
|
NSA ENDC |
Support NR-LTE 1CC/2CC/3CC |
|
5G MIMO |
DL MIMO 4*4UL MIMO 2*2 |
| 5G RX/TX | NSA: 1T4RSA: 2T4R |
| 5G Antenna(Built-in) | 4 omnidirectional antennas |
| 5G Antenna Gain | 3-5 dBi |
| 5G Output power@25℃ | TDD NR: 26+-2dBm(PC2)FDD NR: 23+-2dBm |
| 5G HPUE | Support TDD NR HPUE |
| LTE Category | DL CAT 12, UL CAT13 |
| LTE Modulation | DL 256QAM, UL 64QAM |
|
LTE CC(DL, UL) |
Support DL 3CC/2CC, UL 2CC For detailed combinations, refer to |
|
LTE MIMO |
DL MIMO 2*2, UL MIMO 1*1 |
|
LTE TX/RX |
1T2R |
|
LTE Antenna |
2 Built-in omnidirectional antennas |
| LTE Antenna Gain |
1-5dBi |
| LTE Output Power@25℃ |
23+-2dBm |
| Wi-Fi Frequency |
2.4GHz/5GHz |
| Wi-Fi MIMO | MIMO 2*2(5G)MIMO 2*2(2.4G) |
| Wi-Fi Antenna | 2 Built-in 2.4G Wi-Fi antennas
2 Built-in 5G Wi-Fi antennas |
| Wi-Fi Antenna Gain |
3 dBi |
| Wi-Fi Output Power |
16 dBm/2.4G; 17 dBm/5G; |
| Wi-Fi Channel BW | 20MHz,40MHz,80MHz(5G Wi-Fi) |
| Wi-Fi Channel |
2.4G Wi-Fi Channels: 1-13 5G Wi-Fi Channels: 36 40 44 48 52 56 60 64 100 104 108 112 116 120 124 128 132 136 140 149 153 157 161 165 |
| Peak Throughput | 5G NR: 2Gbps (DL), 1Gbps (UL)LTE: 600Mbps(DL), 100Mbps(UL) |
If the NR/LTE antenna supports all frequency, the antenna gain will be lower than the value in table
Environment Specifications
| Feature | Capability |
| Operating Temperature | 0℃-45℃ |
| Storage Temperature | -40℃-85℃ |
| Operating humidity | 95% Maxton-condensing |
| Storage humidity | 95% Maxton-condensing |
Software Specifications
|
Spec |
Description |
|
Language |
English |
|
Simple Chinese, |
|
|
Could be customized |
|
|
Https/Http |
Both |
|
User Login |
Support two users (admin user and normal user) and different limitation and display |
|
Network Status |
Signal strength |
| Network type(5G/4G..) | |
| SIM card status | |
| Wi-Fi Status | |
| LAN Status | |
|
System Status |
Mobile parameters,APN/DHCP/Wi-Fi information, Memory details,Version/Device information |
|
Internet Settings |
Network mode setup,Data switch,Roaming setup |
|
APN Setup |
APN name,Nat Switch on APN bear,PDP(IPV4/IPV6/IPV4V6),MTU size |
|
Multi APN (Totally 3 APNs) |
|
|
SIM Card |
PIN Management |
|
SIM card Authentication |
|
|
DHCP Setup |
Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
|
Static Route |
Route Setup on WAN/LAN interface |
|
DDNS |
Support |
|
Band Lock |
Support |
|
PCI Lock |
Support |
| Carrier SIM Lock | Support |
|
VPN |
GRE, L2TP, VPN Pass through |
|
Work Mode |
NAT/ Router mode |
Device Management
|
Spec |
Description |
|
Software Update |
Web GUI update TR069 update |
|
TR069 |
HTTP/HTTPS,Supports upload/download the ACS specified file,Support configure & queries parameters
Support remote upgrade Support cycle monitor |
|
Diagnostics |
Ping/Trace |
| Export diagnosis results and operation logs |
WIFI Features
|
Functions |
| Support Wi-Fi Switch on/off |
| Support Wi-Fi SSID/KEY setup |
| Support Encryption:OPEN, WPA2-PSK, WPA/WPA2-PSK,WPA3-PSK, WPA2/WPA3-PSK |
|
Support SSID broadcasting |
| Support Wi-Fi protocol2.4G: 802.11a/b/g/n/ac5G: 802.11a/b/g/n/ac/ax |
|
Support Wi-Fi bandwidth setup |
|
Support Wi-Fi channel self-adapt and select |
|
Supported 2.4G Wi-Fi Channels: 1-13 Supported 5G Wi-Fi Channels: 36 40 44 48 52 56 60 64 100 104 108 112 116 120 124 128 132 136 140 149 153 157 161 165 |
|
Support Wi-Fi maximum users 2.4G Wi-Fi: 16 5G Wi-Fi: 16 |
|
Support multi SSID and guest SSID |
|
Support WPS: Support WPS PIN/WPS PBC |
Firewall Features
|
Functions |
|
DMZ |
|
Port Mapping |
|
Port Filter |
|
IP-Port Filter |
|
MAC Filter |
|
URL Filter |
|
IP MAC Binding |
|
ACL Firewall |
|
Speed Limit |
|
UPnP |
