ZLT M30T
Specifications
Hardware Specifications
|
Spec |
Description |
|
Chipset |
ZX297520V3E |
|
LTE standard |
LTE CAT4 150 Mbps(DL)/50 Mbps(UL) |
|
ROM |
1Gb |
|
RAM |
DDR2 512Mb |
|
LED |
MiFi will enter low consumption mode indicate with Power LED flashing & other LEDs off after unused for 1 minute, please press POWER KEY to wake device up before using. |
|
KEY |
POWER On/Off
WPS RESET |
|
SIM |
Micro SIM, Support 1.8v & 3.3v |
|
MicroSD Card |
1 SD Card Slot Maximum 32GB |
|
Power Consumption |
< 5W |
|
Power Supply |
AC100V~240V, 50Hz~60Hz DC 5V/1A. |
|
Battery |
LI-battery 3.7V/2500mAh |
| Maximum working hours:
4 (depending on the network) |
|
| Maximum standby hours:
120 (depending on the network) |
|
|
Dimensions |
102*60*16.5mm |
|
Weight |
100g |
RF Specifications
|
Feature |
Capability |
| Supported Bands | TDD: 38/39/40/41
FDD: 1/2/3/4/5/7/8/17/20/28 WCDMA: B1/2/4/5/8 |
|
LTE MIMO |
MIMO 2*2(1TX 2RX) |
|
LTE Tx |
1 Tx |
| LTE Output Power@25℃ |
23±2 dBm |
|
LTE Antenna |
2 Built-in Antennas |
|
LTE Antenna Gain |
2-3 dBi |
| LTE Peak Throughput |
DL 150 Mbps UL 50 Mbps |
|
Wi-Fi Frequency |
2.4 GHz |
|
Wi-Fi Output Power |
15 dBm/2.4G |
|
Wi-Fi Antenna |
2 Build-in Antennas |
| Wi-Fi Antenna Gain |
2-3 dBi |
|
Wi-Fi Channel BW |
20MHz, 40MHz |
|
Wi-Fi MIMO |
MIMO 2*2 (2TX 2RX) |
| Wi-Fi Concurrent
Users |
16 |
If the LTE antenna supports all frequency, the antenna gain will be lower than the value in table.

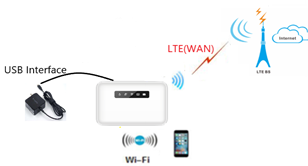

Topology
1.Topology based on LTE WAN network
Environment Specifications
| Feature | Capability |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -20°C~70°C |
| Operating humidity | 95% Maxton-condensing |
| Storage humidity | 95% Maxton-condensing |
Software Specifications
|
Spec |
Description |
|
Language |
English |
|
Chinese |
|
|
Could be customized |
|
|
Https/http |
Both |
|
User login |
Support two users (admin user and normal user) and different limitation and display |
|
SIM Card |
PIN Management |
|
SIM card Authentication |
|
|
Backup/ Restore |
Encryption backup current settings and restore the backup settings |
|
Diagnosis |
Export current diagnosis results and operation logs |
|
Statistics |
Link Status (LAN) |
| Transmit / receive traffic in packets | |
| Up Time | |
|
Multi-APN |
3 |
|
VPN |
PPTP/L2TP/GRE |
|
IPV6 |
IPv6/IPv4 dual stack |
|
4G status |
Signal strength |
|
Network type |
|
|
Network connection status |
|
|
Operator name, system mode |
|
|
SIM card status |
|
|
Cell lock |
Support |
| Carrier SIM Lock |
Support |
|
Work mode |
NAT/Router mode |
Device Management
|
Spec |
Description |
|
Software Update |
Full image upgrade Web UI update TR069 update Update strategy |
|
TR069 |
HTTP/HTTPS,
Supports upload / download the ACS specified file, Support download configuration file, Support configure & queries parameters, Support remote upgrade, Support MiFi version update, Supports debugging operations, Support cycle monitor |
|
Syslog |
Support the syslog function can send the log to the PC via LAN |
|
Diagnostics |
Support the Ping and trace route and tcpdump |
NAT Mode
|
Spec |
Description |
|
NAT |
Support NAT by default |
|
Firewall |
Can enable or disable the firewall |
|
Router protocol |
Static Route |
|
ALG |
Support |
WIFI Features
|
Functions |
| Users can turn on/off WLAN function through Web UI. |
| Support configuration WLAN functions through Web UI, include: SSID, SSID broadcasting turn on/off, AP Isolate function, Channel, rate and mode |
| Support encryption: Un-encrypted, WEP-OPEN, WEP-SHARED, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES) |
| Support WPS |
| Wi-Fi protocol support: IEEE 802.11 b/g/n (2.401 – 2.483 GHz) |
| Wi-Fi max. users: 16 |
| Support SSID broadcasting |
| Support multi SSID |
| Support Wi-Fi channel self-adapt and select |
| Support guest network |
Firewall Features
|
Functions |
|
Allow Ping from WAN |
|
Allow HTTPs login from WAN |
|
HTTPs Login Port from WAN |
|
DMZ IP Address |
|
Redirect ICMP to the Host |
|
Support the IP filter |
|
Support the MAC Filter |
|
Support the URL Filter |
|
Support UPnP |
|
Support the Port forwarding |
