SRT853M
Features
Frequency Band
5G mmWave/5G sub6 DL up to
Ethernet
2.5Gbps Ethernet POE
Waterproof Level
IP65
RJ11
Connect to the telephone

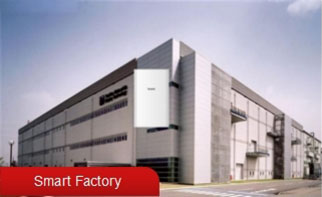

Application Scenarios
Specifications
| Dimension | 186*11 1*35 mm |
| Weight | About 850g |
| Color | White |
| Technical Standard | 5G mmWave NSA/5G Sub6 SA/5G Sub6 NSA 5G/LTE/DC-HSPA+/HSPA+/HSPA/UMTS
5G mmWave: |
| Operating Frequency | N257/N258
5G sub6: N1/N2/N3/N4/N5/N8/N28/N40/N41/N77/N78/N79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B32 LTE-TDD: B34/B38/B39/B40/B41/B42 WCDMA: B1/B2/B3/B4/B5 |
| Maximum Data Throughput | 5G SA NSA mode
• 5G NR: (DL/UL) 2 .4Gbps/900Mbps • LTE: (DL/UL) 1.6Gbps/200Mbps |
| 5G Peak Data Throughput (theoretical) | DL: BW 400MHz, up to 4.3Gbps (mmWave)
UL: BW 200MHz, up to 2.3Gbps (mmWave) DL: BW 100MHz, up to 2.4Gbps (Sub6G) UL: BW 100MHz, up to 0.9Gbps (Sub6G) |
| MIMO | DL 4x4 MIMO |
| Chipset | Qualcomm SDX62 |
| Memory | Modem: 4+4Gbit |
| Power Consumption | < 20W |
| Power Voltage | POE(nonstandard default) |
| USIM/SIM | 1*4FF SIM (nano card) |
| LED | 5G network Indication LED
5G mmWave network Indication LED 4G network Indication LED ETH status LED |
| USB | USB 2.0 |
| Antenna | Internal Antenna*11 |
| Buttons | POWER, Reset, WPS |
| Ethernet | 2.5G LAN |
| ESD | ESD Protection circuit; Contact±8KV, Air±10KV air discharge |
| USB | USB 2.0 micro (for Debug only) |
| IP-Passthrough | Support |
| IPv4/IPv6 | Support |
| UI | WebUI |
| Automatic APN Match | Support |
| SNTP/HTTP/HTTPS | Support |
| APP | BEL APP Support |
| Install | Pole/Wall |
| Data | Statistics |
| BLE | Support(For device configure) |
| Waterproof Level | IP65 |
| Operating Temperature | Normal: -40℃ ~ +50℃; |
| Storage Temperature | -40℃ ~ +70℃; |
| Humidity | 5%~ 95% |
