SLT 772H
Features
CAT6 Dongle
FDD-LTE 300Mbps/50Mbps
Wi-Fi
802. 11b/g/n 2*2 MIMO
Chipset
Qualcomm SDX12
User Access
Wi-Fi supports simultaneous access of 16 users

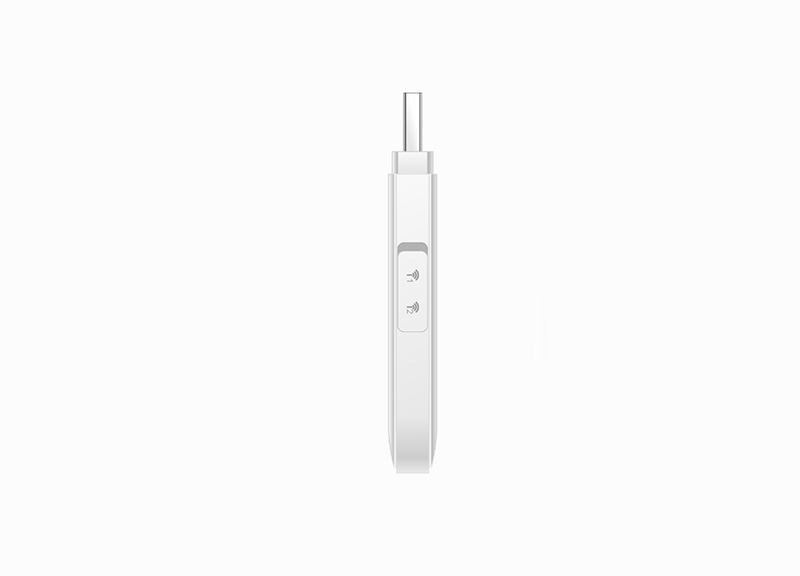

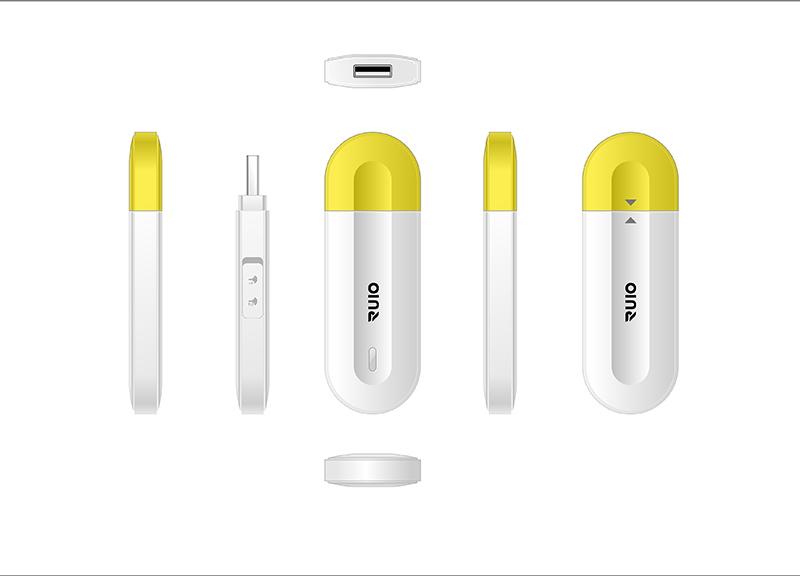

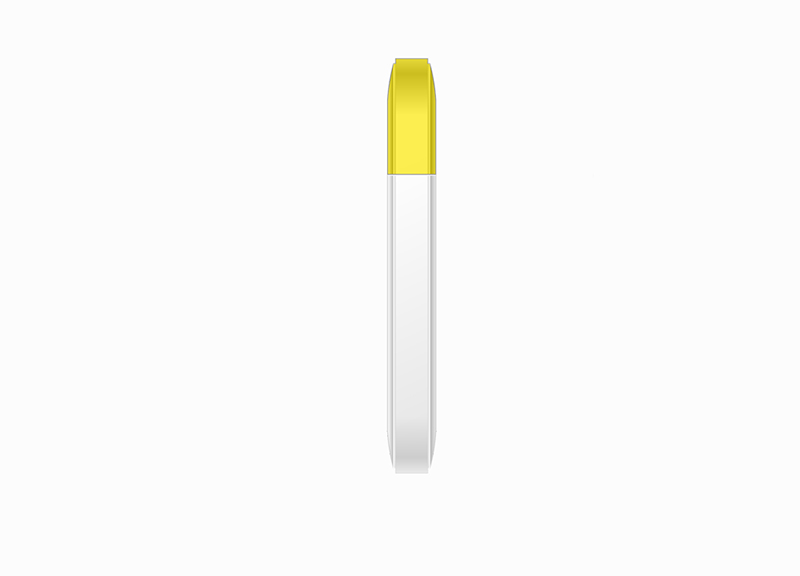

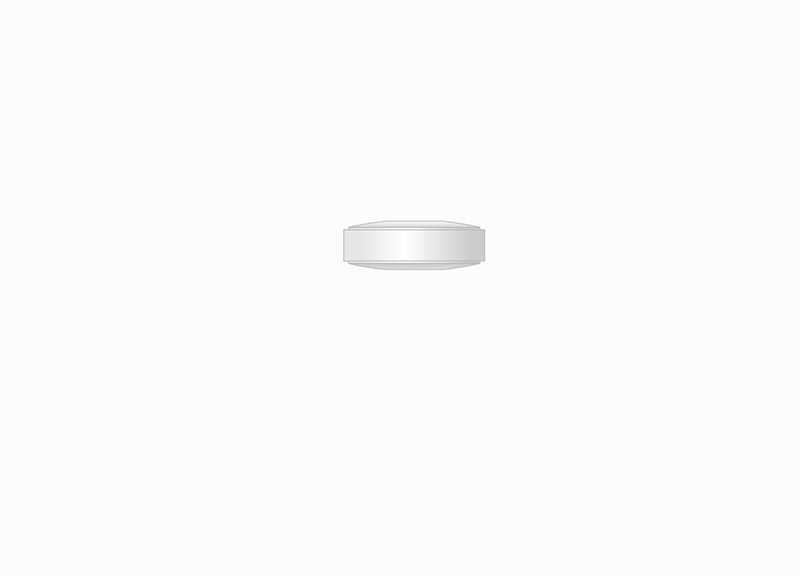

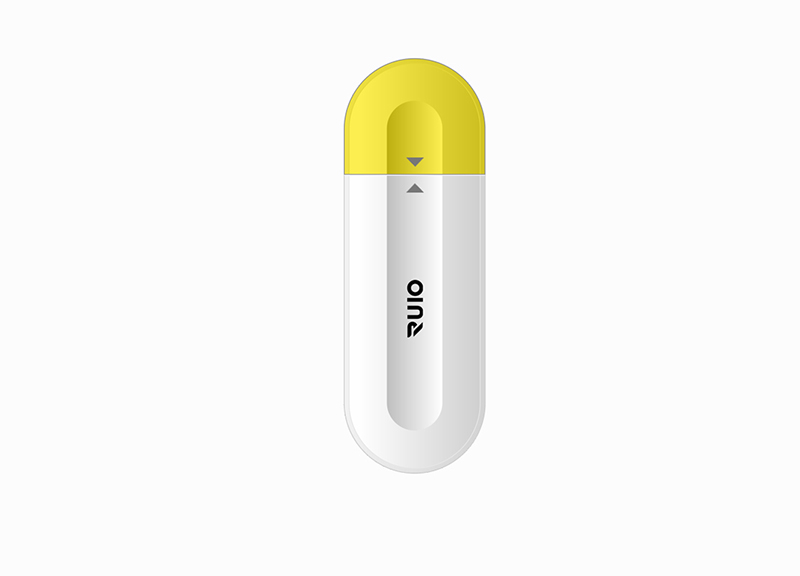

Appearance
Specification
| Form Factor | IOT USB Wi-Fi Stick |
| Dimension | 103*35*14mm |
| Weight | About 34g |
| Color | White |
| Technical Standard | Compatible with FDD-LTE 802.11 b/g/n |
| Frequency | AUS:FDD:B1/B3/B7/B28/B5/B8/B26 |
| Wi-Fi | 2.4G, WIFI 2*2 802.11 b/g/n |
| Maximum Data Throughput | LTE CAT 6 FDD-LTE 300Mbps/50Mbps |
| BB Chipset Wi-Fi Chipset | Qualcomm SDX12 Realtek RTL8192 |
| USB Charging | 5V/1A |
| USIM/SIM | 4FF SIM card Support SIM/USIM/UIM,standard 6 PIN SIM card interface Support 3V SIM card and 1.8V SIM card; internal |
| T-card | NA |
| LED | Three-color LED Solid Blue: Register to 4G network, no data transmission Solid Green: Register to 3G and 2G networks, no data transmission Blinking: There is data transmission, blinking 1s cycle Red: No SIM card, not registered to the network |
| USB | Power |
| Antenna | Built-in |
| ESD | ESD Protection circuit, Contact±8KV, Air±10KV |
| UI | Web-UI |
| SW Update | Local Update, FOTA |
| Wi-Fi Mode | AP |
| Wi-Fi Security | OPEN& WPA2-PSK& WPA-PSK/WPA2-PSK |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| Firewall | Mac/IP address filter, Port forwarding, Wi-Fi Black/White list |
| Data Statistics | Support |
| VPN Pass Through | PP2P/L2TP |
| SIM Lock | Support |
| SNTP | Support |
| DOS ATTACK | Support |
| DMZ | Support |
| HTTP | Support |
| HTTPS | Support |
| Automatic APN matching according to USIM | Support |
| TELEC/JATE/VCCI | Depends on customization, cost related |
| Operating Temperature | -10℃ ~ +45℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% |
