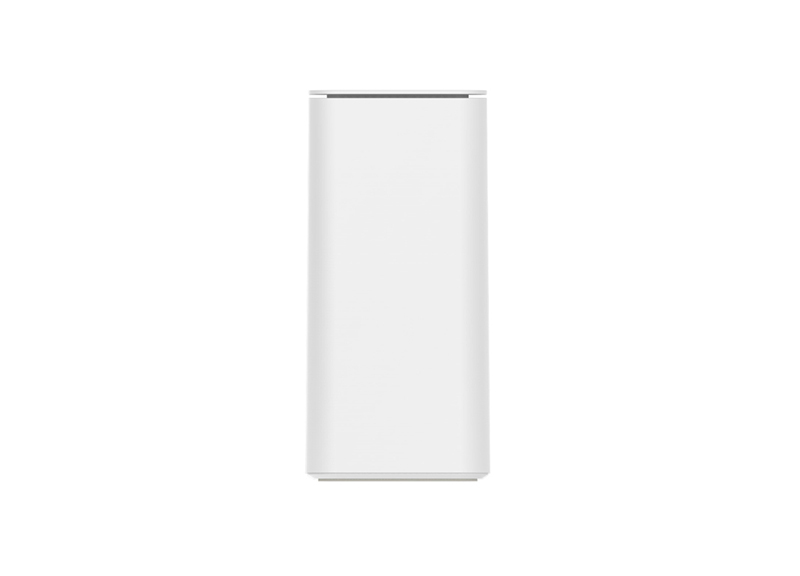

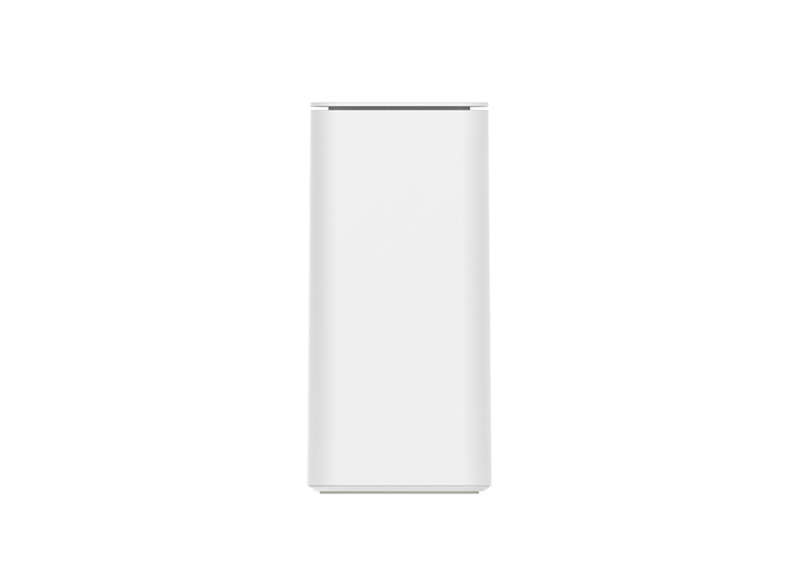

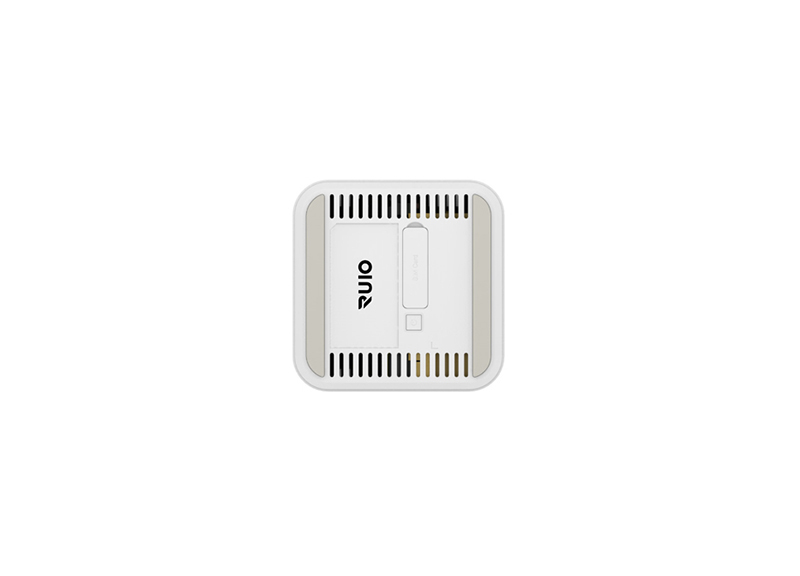

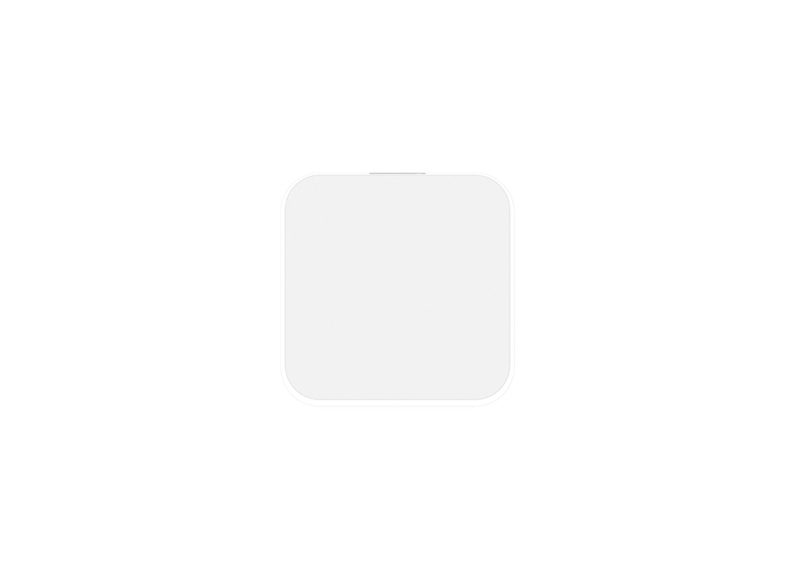

S91
Specifications
Hardware Specifications
|
Spec |
Description |
|
Chipset |
LTE BB: X12/Qualcomm WIFI: MT7562+MT7916+MT7976 |
|
Standard |
LTE CAT 12 600 Mbps (DL)/150 Mbps (UL) |
|
Indictors |
Signal Strength (Three-color light indication) |
|
Buttons |
|
|

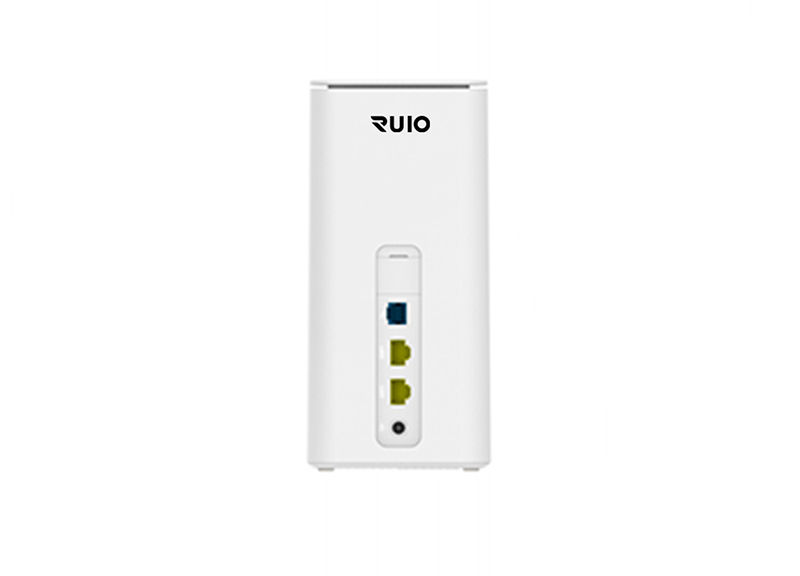

Interfaces |
TS-9 external antenna interface (Optional) |
|
SIM |
1.SIM(3FF) Support 1.8V& 3.0V 2.ESIM |
|
Power Supply |
AC100V~240V,50Hz~60Hz DC 12V DC±10% 1.5A |
|
Power Consumption |
<15W |
|
Dimensions |
190mm*90mm*90mm |
LTE/RF Specifications
|
Feature |
Capability |
|
3GPP Standard |
Release 12 |
|
Support Bands
|
B1/B3/B5/B7/B8/B20/B28/B32LTE-TDD
B38/B40/B41/B42②/B43② WCDMA:B1/B3/B5/B8 PS：The B42、B43 band can be cut to reduce costs |
|
CA |
CA Feature |
|
MIMO |
NR/LTE: DL:MIMO4*4 WIFI： MIMO 2*2(5G) MIMO 2*2(2.4G) |
|
TX/RX |
1T4R |
|
Output Power@25℃（NR/LTE） |
LTE:23±2 dBm |
|
LTE Antenna |
1.Internal 2.External(Optional) |
|
LTE Antenna Gain |
3-5 dBi |
|
Wi-Fi Frequency |
2.4GHz |
|
Wi-Fi Antenna |
Build-in high gain Wi-Fi antenna, 2.4GHz, 5GHz use in common |
|
Wi-Fi Output Power |
20+1/-2dbm/2.4G; 20+1/-2dbm/5G; |
|
Wi-Fi Channel BW |
20MHz,40MHz, 80MHz,160MHz |
|
Wi-Fi Antenna Gain |
2.4G 3-5 dBi, 5G 3-5 dBi; |
Environment Specifications
| Feature | Capability |
|
Operating Temperature |
0°℃~45°℃ |
|
Storge Temperature |
-20°℃~70°℃ |
|
Operating humidity |
5% ~ 95% |
|
Storage humidity |
5% ~ 95% |
Software Specifications
| Spec | Description |
|
Language |
English |
|
Could be customized |
|
|
Https/Http |
Both |
|
User Login |
Support two users (admin user and normal user) and different limitation and display |
|
Network Status |
Signal strength |
|
Network type(3G/4G..) |
|
|
SIM card status |
|
|
Wi-Fi Status |
|
|
System Status |
Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information |
|
Internet Settings |
Network mode setup, Data switch, Roaming setup |
|
APN Setup |
APN name, Nat Switch on APN bear, PDP (IPV4/IPV6/IPV4V6), MTU size |
|
SIM Card |
PIN Management |
|
SIM card Authentication |
|
|
DHCP Setup |
Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
|
Static Route |
Route Setup on WAN/LAN interface |
|
DDNS |
Support |
|
PCI Lock |
Support |
|
Carrier SIM Lock |
Support |
|
VPN |
L2TP, PPTP, GRE, IPSEC |
|
Backup/Restore |
Encryption backup current settings and restore the backup settings |
|
Work Mode |
NAT/ Router mode |
Device Management
| Spec | Description |
| Software Update |
Web GUI update TR069 update |
|
TR069 |
HTTP/HTTPS, Supports upload/download the ACS specified file, Support configure & queries parameters Support remote upgrade Support cycle monitor |
|
Diagnostics |
Ping/Trace/Tcpdump |
|
Export diagnosis results and operation logs |
WIFI Features
| Functions |
|
Support Wi-Fi Switch on/off via Web GUI |
|
Support Wi-Fi SSID/KEY setup |
|
Support Encryption: OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA3-PSK, WPA2/WPA3-PSK |
|
Support SSID broadcasting |
|
Support Wi-Fi protocol IEEE 802. 1 1a/b/g/n, IEEE 802. 11 ac/ax |
|
Support Wi-Fi bandwidth setup |
|
Support Wi-Fi channel self-adapt and select |
|
Supported 2.4G Wi-Fi Channels:1- 13 Supported 5G Wi-Fi Channels:36 -165 |
|
Support Wi-Fi maximum users 2.4G Wi-Fi: 32 5G Wi-Fi: 32 |
Firewall Features
| Functions |
|
DMZ |
|
Port Mapping |
|
Port Filter |
|
IP-Port Filter |
|
MAC Filter |
|
URL Filter |
|
IP MAC Binding |
|
ACL Firewall |
|
Speed Limit |
|
UPnP |
